Brooks Full-View Glass-Tube Variable-Area Flowmeter
About this part
Brooks 1110DK31CLDAA is a legacy Full-View Model 1110, size 9 variable-area flowmeter configured with horizontal 3/4-inch female NPT inlet and outlet connections, a 250 mm R-9M-25-1 borosilicate-glass metering tube, a 316 stainless steel 9-RV-33 float, 316 stainless steel end fittings, and PTFE packing and O-ring. Its scale code specifies a special liquid inscription without special calibration; the process liquid and engraved operating range must therefore be confirmed from the scale or calibration record
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Product series | Brooks Full-View 1100 Series |
| Base model | Model 1110; threaded-connection Full-View flowmeter |
| Operating principle | Glass-tube variable-area measurement (rotameter) |
| Meter size | Size 9 |
| Metering tube | R-9M-25-1 borosilicate-glass tube |
| Nominal scale length | 250 mm |
| Float | 9-RV-33, 316 stainless steel |
| Scale inscription | Special liquid inscription; special calibration not required |
| End fittings | 316 stainless steel |
| Tube packing | PTFE |
| O-ring | PTFE |
| Accessories | None encoded |
| Process connection | 3/4-inch female NPT inlet and outlet |
| Port orientation | Horizontal inlet and horizontal outlet |
| Maximum operating pressure | 175 psig (12.1 bar) for the size 9 metallic-fitting configuration at 70°F, 150°F, and 250°F |
| Series standard flow accuracy | ±2% of full scale; ±1% was an optional special-calibration selection |
| Series repeatability | 0.5% of full scale |
| Ambient temperature | 33 to 125°F (1 to 52°C) |
| Operating-fluid temperature | 33 to 250°F (1 to 121°C) with metallic end fittings |
| Protective tube sleeve | UV-stabilized polycarbonate; required for this size 9 meter |
| Window | Scratch-resistant, UV-stabilized polycarbonate |
| Float stop | 316 stainless steel for a size 9 meter with 316 stainless steel fittings |
Model-code decoding
The official Full-View 1110/1140 ordering table decodes the identifier into the following configuration.
| Code element | Function | Configured meaning |
|---|---|---|
| 111 | Base model | Threaded Full-View meter |
| 0D | Connection orientation | Horizontal inlet and horizontal outlet |
| K | Meter size | Size 9 |
| 3 | Tube designator | R-9M-25-1, 250 mm |
| 1 | Float designator | 9-RV-33 |
| C | Float material | 316 stainless steel |
| L | Scale inscription | Special inscription for liquid service; special calibration not required |
| D | Materials | 316 stainless steel fittings with PTFE packing and PTFE O-ring |
| A / A | Connection and accessories | NPT connection; no accessories |
Reference capacities for the encoded tube and float
These are manufacturer reference capacities for the R-9M-25-1 tube with 9-RV-33 float, not a substitute for the unit’s special liquid scale or process calibration data.
| Reference fluid | Maximum reference flow | Pressure drop | Reference conditions |
|---|---|---|---|
| Water | 1.90 gpm (7.19 L/min) | 5.0 in. water column | Manufacturer capacity table |
| Air | 7.96 scfm (225.4 slpm) | 6.0 in. water column | 14.7 psia and 70°F (21°C) |
Installation and safety notes
- Install the meter within 6 degrees of true vertical, with the inlet at the bottom and outlet at the top.
- Keep the protective sleeve over the glass tube and fasten the meter windows securely.
- Open process valves slowly and avoid pressure or flow surges.
- Do not service or repair the meter while it is pressurized.
- When isolated in liquid service, drain the meter where thermal expansion could pressurize trapped liquid.
Replacement relationship
Brooks identifies the GT1600 Series as its current configurable retrofit family for Full-View 1100 Series meters, including Model 1110. A replacement must be selected from the original connection geometry, flow requirement, fluid properties, pressure, temperature, and scale data rather than from the legacy suffix alone.
Documentation Downloads
Local PDF copiesPart Photos

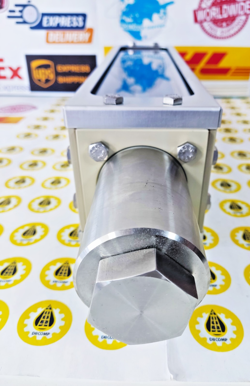

5 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
