Flowmeters
1110DK41CMDAA
Brooks Full-View Industrial Glass-Tube Variable-Area Flowmeter
About this part
Brooks 1110DK41CMDAA is a configured Full-View 1110 Series variable-area flowmeter for gas service. The manufacturer ordering code specifies a size 9 meter with horizontal 3/4-inch female NPT inlet and outlet connections, a 250 mm R-9M-25-3 metering tube, a 9-RV-33 float in 316 stainless steel, a special gas scale inscription, 316 stainless-steel end fittings, PTFE packing and O-ring, and no encoded accessories. The gas species and full-scale flow range are not encoded and must be read from the scale or unit documentation
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Product series | Brooks Full-View 1110 Series |
| Measurement principle | Variable-area flow indication using a glass metering tube and float |
| Meter size | Size 9 |
| Metering tube | R-9M-25-3; 250 mm nominal scale length |
| Float | 9-RV-33 |
| Float material | 316 stainless steel |
| Scale inscription | Special gas inscription; special calibration is not specified by code M |
| Connection type and size | 3/4-inch female NPT inlet and outlet |
| Orientation | Horizontal inlet and horizontal outlet; process flow remains upward through the vertically mounted metering tube |
| Metering tube material | Borosilicate glass |
| End fittings | 316 stainless steel |
| Packing and O-ring | PTFE (Teflon) packing and PTFE O-ring |
| Protective tube sleeve | UV-stabilized polycarbonate; required for this size 9 meter |
| Accessories | None encoded |
| Flow accuracy | Standard series specification: ±2% of full scale; the configured code does not specify the optional 1% calibration |
| Repeatability | 0.5% of full scale |
| Maximum non-shock pressure | 175 psig at 70°F, 150°F, and 250°F (21°C, 66°C, and 121°C) for a non-CRN size 9 meter with metallic fittings |
| Ambient temperature | 33°F to 125°F (1°C to 52°C) |
| Process-fluid temperature | 33°F to 250°F (1°C to 121°C) with metallic end fittings |
What Does 1110DK41CMDAA Mean?
The identifier separates into the manufacturer-defined ordering-code segments shown below.
| Segment | Field | Interpretation |
|---|---|---|
| 111 | Base model | Threaded Full-View 1110 configuration |
| 0D | Connection orientation | Horizontal inlet and horizontal outlet |
| K | Meter size | Size 9; 3/4-inch connections in the horizontal threaded configuration |
| 4 | Tube designator | R-9M-25-3, with 250 mm nominal scale length |
| 1 | Float designator | 9-RV-33 |
| C | Float material | 316 stainless steel |
| M | Scale inscription | Special inscription for gas service; special calibration is not required by this option |
| D | Materials of construction | 316 stainless-steel fittings with PTFE packing and PTFE O-ring |
| A | Connection type | NPT |
| A | Accessories | None |
Scale and Flow-Range Qualification
Code M establishes a special gas scale inscription but does not identify the gas species, reference conditions, engineering units, or full-scale flow value. Those details must be taken from the installed scale, nameplate, calibration record, or an exact manufacturer build record.
Installation and Safety Notes
- Mount the metering tube within 6 degrees of true vertical, with flow entering at the bottom and leaving at the top.
- Keep the protective sleeve over the glass tube and fasten the meter windows securely; these requirements apply to size 9.
- Introduce flow slowly and avoid pressure or flow surges.
- Do not service the meter while it is pressurized, and do not exceed the documented pressure or temperature limits.
Legacy and Replacement Context
Brooks identifies the GT1600 Series as configurable to retrofit Full-View 1100 Series meters, including model 1110. This is a family-level replacement path, not proof of a drop-in GT1600 replacement for 1110DK41CMDAA. Replacement selection must reproduce the connection geometry, tube and float capacity, gas scale, materials, pressure rating, and process conditions.
Documentation Downloads
Local PDF copiesPart Photos

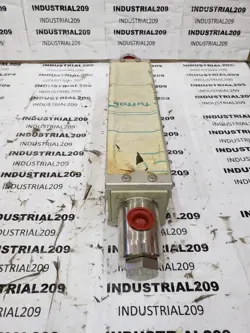

5 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerThe typical recorded price range is $300.00 to $300.00. Based on 1 archived listing record; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- BROOKS 3/4 1110DK41CMDAA ROTOMETER
