1303AL12BA11A
Brooks Instrument Glass Tube Variable-Area Flowmeter
About this part
1303AL12BA11A is a configured Brooks Instrument glass tube variable-area flowmeter identifier observed in Sonisys auction records and exact surplus listing context. Official Brooks GT1600 documentation provides current glass-tube variable-area and GT130x retrofit context, but no verified official Brooks PDF or product page is currently available that names the full configured identifier 1303AL12BA11A. Flow range, tube, float, scale, process fluid, connection, materials, pressure rating, temperature rating, alarms, and service suitability should be verified from the physical unit label and scale
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
ManufacturerBrooks Instrument
Part number1303AL12BA11A
Product familyConfiguration-specific
Device typeFlowmeter
Configuration statusConfiguration varies
Application classIndustrial automation and process equipment
CategoryFlow Control
Specifications
Identification
| Configured part identifier | 1303AL12BA11A |
| Device type | Glass tube variable-area flowmeter / rotameter |
| Manufacturer context | Exact surplus listing evidence identifies the part as a Brooks flow meter; Brooks Instrument is the flowmeter manufacturer context used for this record |
| Legacy family context | Brooks-authored glass-tube quick-start documentation lists GT1303 among legacy Brooks glass-tube variable-area flowmeter models, and current Brooks GT1600 documentation describes retrofit support for GT130x meters |
Flow
| Measuring principle | Variable-area flow indication using a tapered glass metering tube and float |
| Observed exact-unit tube and scale context | Stored Sonisys listing evidence for this exact configured identifier includes GPM scale wording, liquid specific gravity 1.0, viscosity 1.0 cP, tube R-10M-75-3, and approximately 1 inch NPT wording; these are observed listing values, not an official build sheet |
| R-10M-75-3 family table context | Brooks GT1600 capacity tables include size-10 R-10M-75-3 tube rows for water and air capacity context; the actual float, scale range, and service fluid for 1303AL12BA11A must be verified from the unit |
Construction
| Current retrofit family material context | Brooks GT1600 documentation describes borosilicate glass metering tubes, 316/316L stainless steel process fittings, 316 stainless steel housings and hardware, polycarbonate window and safety shield, and selectable wetted O-ring materials for the current retrofit family |
Connections
| Current retrofit family connection context | Brooks GT1600 documentation lists NPT threaded and ANSI 150 lb RF flanged process connection options in horizontal and vertical orientation configurations; exact connection details for 1303AL12BA11A must be verified from the physical unit |
Performance
| Current retrofit family accuracy context | Brooks GT1600 documentation lists standard accuracy options of +/-10%, +/-5%, and +/-2% full scale, with an optional +/-1% full-scale option depending on selected model and tube; this is family context, not an exact 1303AL12BA11A certificate |
| Current retrofit family repeatability | Brooks GT1600 documentation lists repeatability as less than or equal to 0.5% full scale for the current family |
Pressure and temperature
| Current retrofit family limits | Brooks GT1600 documentation lists pressure ratings by tube size and process connection and operating fluid temperature limits of 33 to 250 deg F / 1 to 121 deg C; use the physical unit label for this configured part |
Options
| Current retrofit family options | Brooks GT1600 documentation describes optional high/low flow alarms, panel or wall mounting, and optional integral needle valve configurations |
Configuration
| Configured-unit rule | Tube, float, scale range, direct-reading units, calibrated fluid, connection size, orientation, seal material, pressure rating, temperature rating, alarms, valves, and approvals vary by configured code and unit label |
Applications
| Application domain | Industrial liquid or gas flow indication where a glass tube variable-area meter is suitable for the configured materials, pressure, temperature, and process-fluid limits |
Documentation Downloads
Local PDF copiesPart Photos

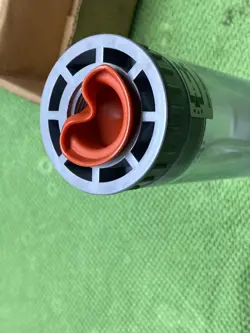

10 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerArchive records3Tracked historical listing records
Historical median price$229.99Based on archived listing records
Recorded price range$149.00 - $250.00Low to high recorded listing price
Local documents2PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $165.20 to $246.00. Based on 3 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- BROOKS 1303AL12BA11A FLOW METER NSMP
- BROOKS 1303AL12BA11A FLOW METER * nos IN BOX *
Archived listings
