8116231G002R is a Brooks Automation / CTI-Cryogenics configured On-Board 10 cryopump assembly identifier found in stored Sonisys auction records. The On-Board 10 family is a cryogenic high-vacuum pump platform with integrated On-Board controls, FastRegen capability, roughing and purge hardware, temperature sensing, setpoint relay support, and remote communication options. Stored auction records also include 8112578G001 in the title; that number is retained as observed listing context and should not be treated as a standalone exact alias for this full pump assembly without label verification
Configurations vary. Verify the exact unit before choosing a replacement.
High-vacuum pumping by cryocondensing and cryosorbing gases on cold arrays driven by a helium refrigeration circuit
Array function
The 80K array condenses water and hydrocarbon vapors; the 15K array condenses nitrogen, oxygen, and argon while charcoal traps helium, hydrogen, and neon
Controls
Integrated control platform
On-Board cryopumps use integrated microprocessor control with hardware keypad/display options, diagnostics, regeneration control, and remote operation options
Remote communication context
Family documentation describes RS-232 operation and BITBUS networking through an On-Board Network Terminal for process-tool integration
Setpoint relays
Family documentation describes two setpoint relays rated 1 amp at 25 V AC/DC with normally-open and normally-closed contacts
Connections
Rough pump connection
NW 25 ISO KF
Air supply connection context
On-Board component identification diagrams show air supply at 60 to 80 psig through a 1/8 NPT connection
Purge gas connection context
Family documentation describes purge gas supply at either 10 to 25 psig or 40 to 80 psig depending on purge-valve labeling
Pumping speed
Water vapor
On-Board 10 table lists 9000 liters/sec
Air
On-Board 10 table lists 3000 liters/sec
Hydrogen
On-Board 10 table lists 5000 liters/sec
Argon
On-Board 10 table lists 2500 liters/sec
Throughput and capacity
Argon throughput
On-Board 10 table lists 1500 scc/min, equivalent to 19 Torr-liters/sec
Argon capacity
On-Board 10 table lists 2000 standard liters
Hydrogen capacity
On-Board 10 table lists 24 standard liters at 5 x 10^-6 Torr
Crossover
On-Board 10 table lists 300 Torr-liters
Regeneration
Full regeneration time
On-Board 10 table lists less than 132 minutes typical
Fast regeneration time
On-Board 10 table lists less than 60 minutes typical
Mechanical
Weight
On-Board 10 table lists 95 lb / 43 kg
Installation orientation
Family installation instructions state the On-Board cryopump may be installed in any orientation without affecting performance
Configuration
Configured-unit rule
Flange, controls, keypad/display position, compressor compatibility, valves, attached modules, rebuild state, and OEM tool integration must be verified from the physical label and installed system
Observed variants
Stored auction title context
Stored Sonisys titles identify the exact code as Brooks Automation CTI-Cryogenics On-Board 10 Cryopump 8116231G002R 8112578G001; 8112578G001 is retained as observed context rather than an exact alias

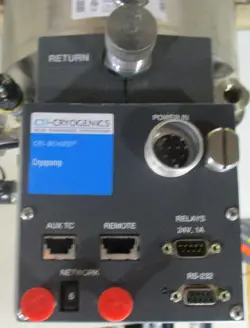

Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offer
Archive records4Tracked historical listing records
Historical median price$11,500.00Based on archived listing records
Recorded price range$11,000.00 - $12,000.00Low to high recorded listing price
Local documents1PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $11,000.00 to $12,000.00. Based on 4 archived listing records; not a current offer, appraisal, or confirmed sale price.
