Brooks Instrument SolidSense II Pressure Transducer
About this part
GFD60C5BSM is a configured Brooks Instrument SolidSense II GF pressure-transducer code. Official Brooks SolidSense II GF/GI documentation supports the family and model-code interpretation, while a manufacturer-authored TE Connectivity product-change notice names the exact part as 2002135-GFD60C5BSM and describes it as a dead-end, 60 PSI compound, 0.05-5.0 V pressure transducer. The resulting identity is a dead-end GF pressure transducer with 60 PSI compound range, voltage output, Bendix connector, and SM face-seal swivel-male fitting; final service suitability should still be verified against the unit label, calibration paperwork, and process-tool requirements
Configurations vary. Verify the exact unit before choosing a replacement.
Application classSemiconductor/high-purity gas delivery
CategorySensors and Gauges
Specifications
Identification
Part identifier
GFD60C5BSM
Exact cross-reference
TE Connectivity product-change documentation lists 2002135-GFD60C5BSM with description DEAD END, 60 PSI COMP, 0.05-5.0V
Series family
Brooks Instrument SolidSense II GF/GI pressure transducers
Device type
SolidSense II GF dead-end pressure transducer
Model code
Base/body code
GFD decodes as GF pressure transducer with D dead-end body type in Brooks SolidSense II GF/GI model-code documentation
Pressure range and reference
60C decodes as 60 PSI compound-pressure range
Electrical
Output signal
5 decodes as 0.05 to 5.05 Vdc output in Brooks model-code documentation; the exact TE PCN line describes this configured part as 0.05-5.0V
Power requirement for 0 to 5 Vdc versions
Brooks SolidSense II GF/GI documentation lists 11 to 30 Vdc for 0 to 5 Vdc output
Electrical connection
B decodes as Bendix connector
Mechanical
Process fitting
SM decodes as 1/4 inch face-seal swivel male fitting
Performance
Series accuracy
Brooks SolidSense II GF/GI documentation lists 0.25% full scale BFSL accuracy for the series; verify calibration status on the physical unit
Materials
Series wetted-material context
Brooks SolidSense II GF/GI documentation lists 316L stainless steel wetted parts with SEMI F20 context for the series
Applications
Application domain
High-purity and ultra-high-purity pressure monitoring for semiconductor, specialty-gas, and industrial pressure-measurement service
Configuration
Configured-unit rule
Calibration, label markings, process compatibility, connector variant, fitting orientation, and tool-fit details must be verified from the physical unit and OEM equipment documentation

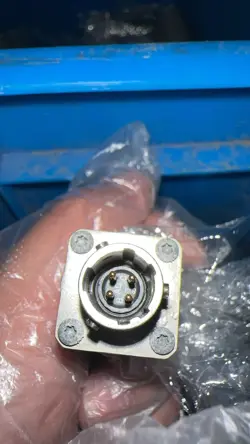

Historical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offer
Archive records3Tracked historical listing records
Historical median price$1,377.50Based on archived listing records
Recorded price range$149.99 - $1,395.00Low to high recorded listing price
Local documents3PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $395.49 to $1,391.50. Based on 3 archived listing records; not a current offer, appraisal, or confirmed sale price.
