Archive Record — Brooks Instrument 2001-V Brooks-Mite Water Purgemeter
About this part

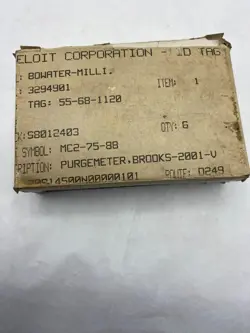

MC2-75-88 is an equipment symbol observed on packaging for a Brooks Instrument 2001-V Brooks-Mite water purgemeter. Official Brooks documentation identifies the legacy 2001 Series as acrylic variable-area flowmeters with an integral tapered metering tube and direct-reading air or water scales. Stored images show this archived unit with a 0-10 GPH WATER scale, a black ball float, an integral needle valve, side-facing process connections, and a 100 psig at 160 F warning. MC2-75-88 is not presented as a Brooks factory model number because the photographed packaging labels it as a SYMBOL and separately describes the instrument as BROOKS-2001-V
Configurations vary. Verify the exact unit before choosing a replacement.
Application classIndustrial automation and process equipment
CategoryFlow Control
Specifications
Identification
Archive identifier
MC2-75-88; observed on packaging as a SYMBOL rather than a Brooks factory model number
Observed manufacturer and model wording
Brooks Instrument 2001-V Brooks-Mite purgemeter
Official product family
Brooks 2001 Series acrylic tube variable-area flowmeters
Flow
Measuring principle
Variable-area flow indication using a float in an integrally machined tapered metering tube
Construction
Family body construction
Clear acrylic plastic body with an integral metering tube
Performance
Family accuracy
+/-10% of full scale
Family repeatability
1% of full scale
Family rangeability
10:1
Pressure/Temperature
Official family limit
100 psig maximum from 35 F to 160 F (1.67 C to 72 C); verify the physical meter and service conditions before use
Installation
Mounting orientation
Install vertically with the inlet at the bottom and outlet at the top, following the Brooks Model 2001 manual
Configuration
Configured-unit boundary
Scale, tube and float, fitting material, connection size, seal material, valve location, service fluid, and calibration vary by configuration and must be verified from the physical unit
Documents
Hosted official documentation
Brooks Model 2001 Brooks-Mite Installation and Operation Manual is hosted locally
