Vacuum And Cryogenics
MC4000-1210-022
Polycold MaxCool 4000H Cryochiller
About this part
MC4000-1210-022 is a water-cooled, single-circuit Polycold MaxCool 4000H cryochiller. Its documented configuration uses the high-voltage three-phase power platform, size-8 Parker UltraSeal-compatible refrigerant couplings, and PROFIBUS customer communication. MaxCool 4000H systems provide continuous cryogenic cooling for water-vapor capture and direct industrial cooling applications
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
ManufacturerEdwards Polycold MaxCool 4000H
Part numberMC4000-1210-022
Product familyConfiguration-specific
Device typeClosed-loop cryogenic refrigeration system (cryochiller)
Configuration statusConfiguration varies
Application classVacuum and cryogenic systems
CategoryVacuum And Cryogenics
Specifications
Identification
| Manufacturer catalog part number | MC4000-1210-022 |
| Product family | Polycold MaxCool 4000H |
| Exact catalog description | MAXCOOL 4000H - 1CKT, HV, PKR, SR, REMO, PBUS |
Exact configuration
| Refrigeration circuits | Single circuit |
| Electrical platform | High-voltage, three-phase |
| Cataloged nominal supplies | 380 or 400 VAC at 50 Hz; 460 or 480 VAC at 60 Hz |
| Refrigerant couplings | Size 8 Parker UltraSeal compatible |
| 24 V remote interface | None |
| Customer communication interface | PROFIBUS |
MaxCool 4000H family performance
| Maximum rated cooling load | 4,000 W at -98 °C average temperature under documented standard test conditions |
| Coldest no-load temperature | -133 °C (140 K) |
| Water-vapor pumping speed in workspace | 10,000 to 220,000 L/s, depending on cryosurface and installation |
| Theoretical water-vapor pumping speed | Approximately 328,000 L/s with the documented typical cryocoil |
| Typical cryocoil surface area | 2.2 m² (23.7 ft²), single circuit |
MaxCool 4000H family utilities
| Maximum power input | 19.2 kW |
| Typical input at maximum rated load | 14 kW at 25 °C cooling water and 60 Hz supply |
| Typical standby input | 8.0 kW at 25 °C cooling water and 60 Hz supply |
| Cooling method | Water cooled |
| Cooling-water temperature | 13 to 38 °C (55 to 100 °F); required flow increases with inlet temperature |
MaxCool 4000H family physical data
| Standard dimensions | 813 mm wide × 663 mm deep × 1,791 mm high, excluding casters and lifting hooks |
| Standard weight | 533 kg (1,175 lb) |
| Maximum operating sound level | 78 dB(A); 69 dB(A) with the sound-attenuation option |
MaxCool 4000H family refrigerants
| Refrigerant-blend components | R-245fa, R-125, R-23, R-14, and argon; exact charge quantities are stated on the unit identification label |
What Does MC4000-1210-022 Mean?
The manufacturer catalog documents the complete identifier as a configured MaxCool 4000H variant. The blocks below preserve that documented mapping without inferring an unpublished character-by-character ordering code.
| Segment | Field | Interpretation |
|---|---|---|
| MC4000 | Product family | MaxCool 4000H cryochiller |
| 1210 | Base configuration block | The catalog maps this exact identifier to one circuit, the high-voltage platform, and size-8 Parker UltraSeal-compatible couplings. Individual digit meanings are not asserted without the manufacturer ordering-code legend. |
| 022 | Configured option bundle | The exact catalog description carries SR, REMO, and PBUS markings. PBUS is corroborated as PROFIBUS by the catalog communication field; the public catalog does not explicitly expand SR or REMO. |
Installation and Configuration Notes
- Connect and verify cooling-water flow before energizing the cryochiller.
- Match the transformer tap setting to the supply voltage stated on the physical unit label.
- The catalog explicitly reports no 24 V remote interface for MC4000-1210-022. The REMO marking therefore must not be presented as proof of isolated or non-isolated 24 V remote I/O.
- Use the physical identification label for refrigerant quantities and serial-specific electrical settings.
Documentation Downloads
Local PDF copies
Polycold Cryochiller Instruction Manual, Publication 501940, Revision B
Local PDF download
PDF12.9 MB
Polycold Cryochiller PROFIBUS Interface, Publication 501937, Revision B
Local PDF download
PDF397 KB
Polycold Cryochiller Service and Maintenance Manual, Publication 185303, Revision E
Local PDF download
PDF4.8 MB
User Manual, PROFIBUS Interface, Polycold Cryochiller, Publication 200989, Revision D
Local PDF download
PDF981 KB

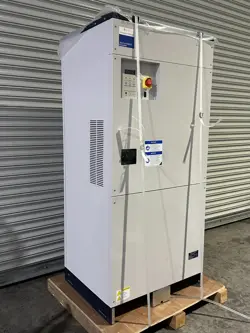

Part Photos
5 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerArchive records1Tracked historical listing records
Historical median price$29,999.00Based on archived listing records
Recorded price range$29,999.00 - $29,999.00Low to high recorded listing price
Local documents4PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $29,999.00 to $29,999.00. Based on 1 archived listing record; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- Brooks Polycold Systems MaxCool 4000H MC4000-1210-022 Cryogenic Cryochiller Unit
Archived listings
Other Part Numbers & Aliases
MC4000-1210-022MAXCOOL 4000H - 1CKT, HV, PKR, SR, REMO, PBUSBrooks Polycold Systems MC4000-1210-022
