Brooks Instrument SolidSense II Pressure Transducer
About this part

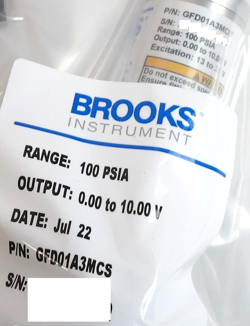

GFD01A3MCS is a non-display Brooks Instrument SolidSense II GF pressure transducer configured for dead-end pressure measurement, 100 psia full scale, a 0.00–10.00 VDC analog output, a 5-inch pigtail with four-pin AMP connector, and a standard 1.125-inch C-seal surface-mount process connection
Configurations vary. Verify the exact unit before choosing a replacement.
ManufacturerBrooks Instrument SolidSense II GF Series
Part numberGFD01A3MCS
Product familyConfiguration-specific
Device typePressure Sensor
Configuration statusConfiguration varies
Application classIndustrial automation and process equipment
CategorySensors and Gauges
Specifications
Identification
Manufacturer
Brooks Instrument
Product series
SolidSense II GF Series, non-display version
TE Connectivity part number
20006773-15
Configured Measurement
Body type
Dead end
Full-scale range
100 psia
Pressure reference
Absolute
Configured Output
Analog output
0.00 to 10.00 VDC
Configured Connection
Electrical connection
5 in (0.127 m) pigtail with four-pin AMP connector; voltage-output configuration
Process fitting
Standard surface-mount 1.125 in C-seal
Performance
Accuracy
0.25% of full scale, BFSL
Response time
Less than 5 ms
Pressure Limits
Proof pressure
200% of full scale
Burst pressure
400% of full scale
Environmental
Operating temperature
-20 to 180 °F (-29 to 82 °C)
Storage temperature
-40 to 180 °F (-40 to 82 °C)
Compensated temperature
-4 to 140 °F (-20 to 60 °C)
Materials and Cleanliness
Housing
Stainless steel and polymer plastics
Wetted parts
316L stainless steel, SEMI F20
Surface finish
Compliant with SEMI F19
Cleanliness
Compliant with ASTM F1374-92 (2005)
Mechanical
Internal volume
1.79 cc
Approximate shipping weight
0.70 lb (0.32 kg)
Electrical
Power requirement
13 to 32 VDC
Maximum supply current
10 mA
Maximum output impedance
100 ohms
Typical load impedance
10 kΩ
Maximum noise
10 mV, zero-to-peak
What Does GFD01A3MCS Mean?
Brooks defines seven ordering-code fields for the standard SolidSense II GF/GI configuration. Every segment of this identifier is documented.
Segment
Field
Interpretation
GF
Base model
Pressure transducer; GF denotes the non-display series.
D
Body type
Dead end.
01
Pressure/vacuum range
100 full scale; the following segment establishes the units and reference.
A
Pressure/vacuum units
Absolute pressure in psi. Combined with 01, this specifies 100 psia full scale.
3
Output
0.00–10.00 VDC analog output.
M
Electrical connection
5-inch (0.127 m) pigtail with four-pin AMP connector, for voltage output.
CS
Fitting
Standard surface-mount 1.125-inch C-seal.
Configuration-Specific Type M Pinout
The Brooks voltage-output wiring table assigns the four AMP connector pins used by the M electrical option.
Pin
Function
Interpretation
1
+ Supply (+E)
Positive DC supply
2
Common
Shared supply and output common
3
+ Output (+O)
Positive analog voltage output
4
N.C.
No connection
2024 Origin-Marking Service Note
TE Connectivity PCN-SZ-240028 includes this exact configured identifier. The notice changes origin marking and invoicing, not product specifications, obsolescence status, or replacement assignment.
TE Connectivity part number20006773-15
Configured identifierGFD01A3MCS
Country-of-origin codeDE (Germany)
Physical-product COO markingNo
Outer shipping-box COO markingYes
PCN dateJune 21, 2024
Change effective dateOctober 1, 2024
Obsolescence or substituteNone identified by the notice
Installation and Commissioning Notes
Keep the transducer double-bagged until installation in a clean environment.
Maintain at least 1 slpm (0.05 scfm) of inert gas during installation; electronic-grade nitrogen is recommended.
Verify process-seal integrity using an appropriate helium leak test.
Do not use the housing or cable nut as leverage when tightening the process connection.
The transducer is factory calibrated and normally requires no field adjustment.
