Flow Control
SLA5850S1EAB1B1A1
Brooks Instrument SLA5800 Digital Thermal Mass Flow Controller
About this part
SLA5850S1EAB1B1A1 is a configured Brooks Instrument SLA5850 / SLA5800 Series elastomer-sealed digital thermal mass flow controller identifier. Brooks SLA5800 documentation covers SLA5850, SLA5851, and SLA5853 controllers plus related SLA5860-series meters; exact gas, full-scale range, connection, seal package, valve state, and communication options remain configured-unit details. Sonisys auction history and exact listing evidence show this configured code appearing with 1/4 VCR, 15-pin units and gas/range variants including AIR 10 SLM, H2 10 SLM, AR 5 SLM, O2 10 SLM, and O2 20 SLM
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
ManufacturerBrooks Instrument
Part numberSLA5850S1EAB1B1A1
Product familySLA5800 Series
Device typeMass Flow Controller
Configuration statusConfiguration varies
Application classSemiconductor/high-purity gas delivery
CategoryFlow Control
Specifications
Identification
| Device type | Elastomer-sealed digital thermal mass flow controller for gases |
| Series family | SLA5800 Series |
| Related documented controller models | SLA5850, SLA5851, and SLA5853 |
| Observed part identity | Stored Sonisys titles and eBay listing pages identify SLA5850S1EAB1B1A1 as a Brooks mass flow controller configured-code identifier |
Configuration
| Configured-unit rule | Gas, full-scale range, process connections, seal material, valve state, electrical interface, and digital communications vary by configured code and nameplate |
Applications
| Application domain | Advanced gas handling, production, laboratory, analytical, chemical and petrochemical research, fuel cell, life science, and process gas control |
Flow
| SLA5850 range capability | 0-3 ccm to 0-30 lpm N2 equivalent; up to 0-50 lpm with coplanar valve option |
| Overall SLA5800 family range | Less than 3 ccm to 2500 lpm N2 equivalent across the SLA5800 family |
Observed variants
| Stored auction gas/range combinations | AIR 10 SLM, H2 10 SLM, AR 5 SLM, O2 10 SLM, and O2 20 SLM appear in stored titles for this configured code |
| listing gas/range examples | Exact listing records pages were found for O2 20 SLM and AIR 10 SLM units |
| Observed connection and electrical context | Exact stored and listings describe 1/4 VCR process connections and 15-pin electrical interface wording for this configured code |
Performance
| Accuracy | +/-1.0% of rate from 20-100% full scale and +/-0.2% full scale below 20% full scale up to 1100 lpm |
| Repeatability | +/-0.20% of rate |
| Control range | 50:1 turndown; 100:1 turndown with coplanar valve option for 1-50 lpm N2 equivalent full-scale ranges |
| Settling time | Less than 1 second to within +/-2% full scale for a 0-100% command step up to 100 lpm |
| Long-term drift | Less than 0.2% per year |
Calibration
| Selectable calibration curves | Storage of up to 10 selectable calibration curves |
Controls
| Analog interface | 15-pin D-connector with 0(1)-5 V or 0(4)-20 mA setpoint and flow signals, depending on configuration |
| Digital communication options | RS-485 / HART-based S-protocol, DeviceNet, FOUNDATION Fieldbus, Profibus, EtherNet/IP, and EtherCAT options depending on configuration and revision |
| Gas/range programmability | MultiFlo gas and range programmability is supported on applicable SLA5800 configurations |
Electrical
| Power supply context | Analog option 13.5-27 Vdc; digital options vary by protocol |
Ratings
| Pressure rating context | SLA5850/SLA5860 model family is listed at 100 bar / 1500 psi; optional higher-pressure versions exist for selected body styles |
| Operating ambient temperature | 0 to 65 C |
| Non-operating ambient temperature | -25 to 100 C |
| Leak integrity | 1 x 10^-9 atm scc/sec helium maximum, inboard to outboard |
Materials
| Wetted materials | Stainless steel wetted parts with Viton fluoroelastomers standard; optional Buna-N, Kalrez, Teflon/Kalrez, and EPDM seal materials |
Connections
| Process connection context | Flow-through, flange, coplanar valve, and elastomer downport connection configurations are available depending on model and configured code |
Documentation
| Hosted official documentation | Sonisys hosts local copies of the Brooks SLA5800 data sheet, installation manual, quick start guide, and MultiFlo configurator guide |
Documentation Downloads
Local PDF copiesPart Photos

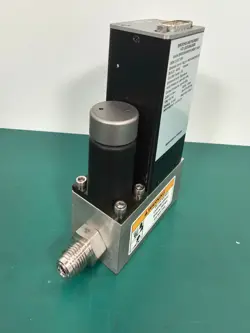

25 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerArchive records6Tracked historical listing records
Historical median price$699.00Based on archived listing records
Recorded price range$250.00 - $699.00Low to high recorded listing price
Local documents4PDF copies available from Sonisys
Recorded price context
The typical recorded price range is $474.50 to $699.00. Based on 6 archived listing records; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller O2 20SLM 6V 15PIN
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller O2 10SLM 4V 15PIN
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller H2 10SLM 6V 15PIN
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller AR 5SLM 4V 15PIN
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller AIR 10SLM 4V 15PIN
- BROOKS SLA5850S1EAB1B1A1 Mass Flow Controller 4V/6V 15PIN
