Flow Control
5848A3V1
Brooks Instrument Model 5848 In-Line Mass Flow Filter
About this part
5848A3V1 is an archive-observed Brooks Instrument Model 5848 in-line filter identifier used with mass flow meters and controllers. Official Brooks Model 5848 documentation confirms the in-line filter platform, available element ratings, 9/16-18 process connections, 316 stainless construction, pressure and temperature limits, and current model-code logic; however, the current official PDF names 5848B3V1 rather than the older/observed 5848A3V1 code, so the A/B base-code difference and physical O-ring condition should be verified from the unit label and OEM support records
Configurations vary. Verify the exact unit before choosing a replacement.
Key Facts
Specifications
| Part identifier | 5848A3V1 |
| Manufacturer context | Brooks Instrument Model 5848 in-line filter accessory for mass flow instruments |
| Observed exact-part description | Stored auction evidence identifies 5848A3V1 as a Brooks Instrument 5 micron mass flow filter; non-official historical Brooks data-sheet copies also show 5848A3V1 as a 5 micron / Viton O-ring example |
| Device type | In-line filter used to protect Brooks mass flow meters and controllers from foreign matter |
| Compatible model context | Brooks documentation describes Model 5848 for use with Brooks Models 5850, 5851, and 5860 mass flow meters and controllers |
| Available filter element ratings | 0.5, 2, 5, 10, and 40 micron element options are documented for the Model 5848 platform |
| Connections | 9/16-18 male and female threads, MS16142 context, per official Model 5848 data sheet |
| Materials | 316 stainless steel housing, 316 sintered stainless steel filter element, and Viton, Buna, or optional Kalrez O-ring material options |
| Maximum pressure | 4500 psig (300 bar) per official Model 5848 data sheet |
| Maximum temperature | 150 deg F (65 deg C) per official Model 5848 data sheet |
| Installed length effect | Official Model 5848 data sheet states that the filter adds 2.0 inches to the installed length of the mass flow instrument |
| Configured-unit rule | Base-code revision, element rating, O-ring material, physical seal condition, installed instrument, and process compatibility must be verified from the physical unit and OEM documentation |
| Verification boundary | Do not treat 5848B3V1, 5848A2V1, other Model 5848 variants, or spare element numbers as exact aliases or interchangeable parts without matching the full code, element rating, O-ring material, and equipment requirement |
| Application domain | Gas mass-flow instrumentation protection in Brooks flow-control installations |
Documentation Downloads
Local PDF copiesPart Photos

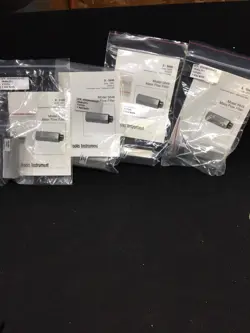

3 imagesHistorical archive images for identification, labels, connectors, and condition reference, not current inventory.
Historical Listings & Prices
Historical listing data, not a current offerThe typical recorded price range is $70.00 to $70.00. Based on 1 archived listing record; not a current offer, appraisal, or confirmed sale price.
View archived listing titles
- BROOKS INSTRUMENT 5848A2V1 MASS FLOW FILTER 2 MICRONS 5848A2V1 (X-T)
- BROOKS INSTRUMENT 5848A3V1 MASS FLOW FILTER 5 MICRONS 5848A3V1 (X-T)
