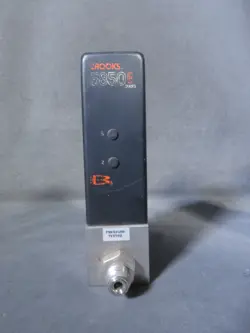

5850EC4BE2CF2A is a configured Brooks Instrument 5850E Series thermal gas mass flow controller identifier observed in Sonisys auction history. Official Brooks 5800E / 5850E documentation verifies the 5850E as an elastomer-sealed analog gas mass flow controller platform. Stored auction evidence for this exact configured code identifies xenon with a 10 SCCM observed flow context, but exact gas calibration, full-scale range, fitting, connector, valve state, and seal package should be verified from the physical unit label or calibration paperwork
Unit-specific configuration
Observed configuration
Historical listing records identify this part as Xenon at 10 SCCM. Exact gas, range, fittings, valve configuration, and communication interface must be verified from the physical unit label.
Configurations vary. Verify the exact unit before choosing a replacement.
Application classSemiconductor/high-purity gas delivery
CategoryFlow Control
Specifications
Identification
Part identifier
5850EC4BE2CF2A
Device type
Thermal gas mass flow controller
Series family
Brooks 5800E / 5850E elastomer-sealed analog gas mass flow controller series
Configuration
Configured-unit rule
Gas, full-scale range, process fitting, connector, valve state, and seal package vary by configured model code and physical unit label
Function
Control architecture
Official 5850E documentation describes a flow sensor, control valve, and integral electronic control system used to produce stable gas flow
Flow
5850E standard range context
Brooks 5800E data-sheet context lists the 5850E / 5860E model row with 0.003 slpm minimum full scale and 30 slpm maximum full scale nitrogen equivalent
Performance
5850E accuracy context
+/-1% full scale including linearity at calibration conditions; higher-flow variants are specified separately
5850E repeatability context
0.25% of rate repeatability and reproducibility
5850E response time context
Less than 3 seconds settling time to within +/-2% full scale for a 0 to 100% command step
5850E control range context
50:1
Pressure
5850E pressure rating context
Brooks 5800E data-sheet context lists a 1500 psi / 100 bar standard pressure rating for the 5850E / 5860E model row
Controller pressure differential context
Brooks 5850E documentation lists 5 to 50 psi differential pressure for 5850E controller configurations, with minimum pressure drop dependent on gas and range
Environmental
Operating temperature context
5 C to 65 C
Electrical
5850E command input
0-5 Vdc command input with 200 k ohm input resistance
5850E flow output
0-5 Vdc output into 2000 ohms or greater
5850E connector options
Card-edge connector or 15-pin male Sub-D DA-15P connector, depending on configuration
Materials
5800E wetted-material context
Official 5800E data-sheet context lists 316L stainless steel, high-alloy stainless steel, Viton fluoroelastomers, Buna-N, Kalrez, and Teflon among primary wetted materials, depending on configuration
Brooks 5800E data-sheet context lists 1/8 inch, 1/4 inch, and 3/8 inch compression fitting options plus 1/4 inch VCO and VCR options for the 5850E / 5860E model row
Controls
Valve override
Official 5850E documentation describes valve override for fully opening or closing the control valve independent of command setting
Soft start
Official 5850E documentation describes soft start as a flow-ramping function for processes that cannot tolerate rapid flow transition
Applications
Application domain
Semiconductor, laboratory, analytical, chemical and petrochemical research, fuel-cell, life-science, and general gas-flow applications
Observed variants
Stored auction gas and range context
Stored auction records for this exact configured code identify xenon and 10 SCCM in two listing records; this is observed listing context, not an official universal specification
